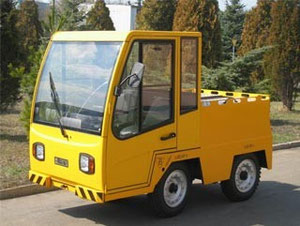

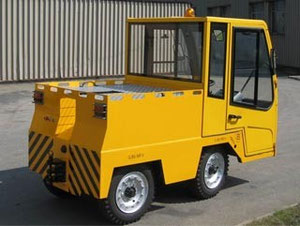

KAWE Electrical Tow Tractors
Electric towing tractor is designed for hauling trailers. High manoeuvrability, fast attainment of maximum travel speed as well lighting and warning installation make suitable for in-house transportation, at seaports, airports, railway stations, for mail transport, hospitals and on public roads. Its towing force is sufficient for hauling 4 trailers of total weight 2.000 kg each.
The tractor is designed for operation under normal climatic conditions and mustn't be operated in rooms with caustic or explosive materials. Efficient and powerful vehicle with perfect characteristic. Ideal for continuous economic activity in workshops as well as outside. Compact dimensions enable small turning circle and reliable working in confined spaces. Variety of additional equipment like two seats, full cab and electric heating guarantee customizing to meet specific needs.
Technical specification of KAWE tow tractor K8
Technical data WAC 23-0121 / WAC 23-0122
Towing possibility together with trailer 8000 kg
Weight 1900 kg
Speed 0-15,5 km/h
Front axle load (max) 710/725 Kg
Rear axle load (max) 1170/175 Kg
Lenght 2740 mm
Width 1250 mm
Height 1900 mm
Wheelbase 1170 mm
Wheel truck front 930 mm
Wheel truck rear 1010 mm
Road clearance (min) 190 mm
Height of tow hitch from ground 305-395 mm approach angle 17 degree
Departure angle 34degree turning radius 2025 mm
Tyres Pneumatic Size 23 x 5
Pressure 0,55 MPa
Battery dim. 240Ah/5h
Weight 770 kg
Type 4A220 / 4A240
Voltage 80V
Capacity 5h 220/240 Ah/5h
